Home Ozone Laundry System

A Wall-Mounted Ozone-Water System for Compatible Washers

Eco3Wash connects to a compatible washing machine cold-water supply and operates while the washer fills.

Get Price & CompatibilitySee How It Works
Cold-water connectionDesigned for the washer cold-water supply.
Wall-mounted housingCompact installation above or beside the washer.
On-demand operationRuns while sufficient inlet-water flow is detected.
Compatibility firstConfirm the washer model and connection area before ordering.

Product overview

A focused residential laundry appliance

The system routes incoming cold water through the wall-mounted unit before it reaches the washing machine. The internal air-dryer cartridge, ozone-generation module, injector and mixer support the treatment path shown in the manufacturer-supplied diagram.

  • No remote control is included.
  • This model uses a replaceable desiccant cartridge; it does not have automatic dehumidification.
  • Detergent needs and laundry results vary by washer, fabric, soil, water quality and wash program.
  • The outlet water is not intended for drinking or ingestion.
Eco3Wash wall-mounted home ozone laundry system
Manufacturer-supplied product photograph with only the printed wordmark replaced by the Eco3Wash brand mark. Housing, indicator window, fittings and water background remain from the source image.

Manufacturer source diagram

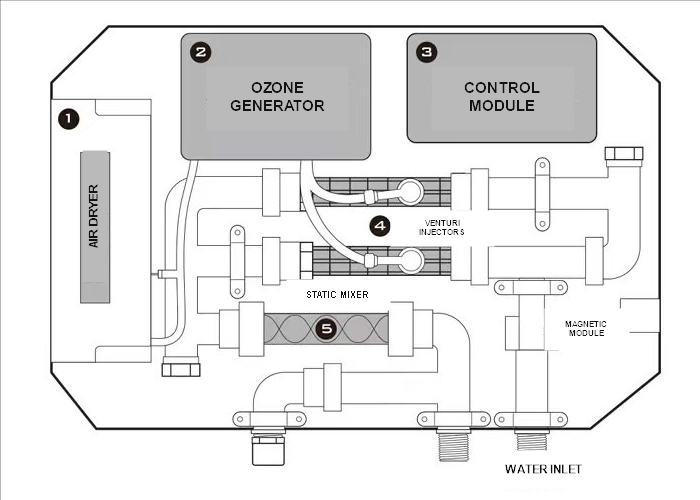

Functional groups inside the treatment path

The diagram below retains the manufacturer-supplied component layout and line work. Only the original Chinese labels have been replaced with English; the numbered legend adds practical context outside the image.

English-labeled manufacturer internal functional diagram for the laundry water-treatment unit
Simplified functional diagram from the latest supplied sales sheet. It is not a service drawing; use the production instructions for repair or installation decisions.
  1. 1 · Air dryer
    Replaceable desiccant cartridge for the incoming air path.
  2. 2 · Ozone generator
    Produces ozone while the system is operating.
  3. 3 · Control module
    Coordinates water-flow activation and the operating sequence.
  4. 4 · Venturi injectors
    Draw gas into the water path.
  5. 5 · Static mixer
    Promotes gas-and-water mixing before the outlet.
  6. Additional module
    The supplied diagram also shows a magnetic module without a numbered performance claim.

Latest supplied sales-sheet data

Current published product specifications

ModelKH-W502
Electrical inputAC 100-240V, 50/60Hz
Electrical outputDC 12V, 2.5A, 30W
Ozone concentration0.4-0.5 mg/L
Water pressure15-75 PSI
Listed operating temperature0-78°C
Dimensions432 x 254 x 94 mm
Net weight1.8 kg
Document basis: these values follow the latest sales material supplied for this project. Confirm the production label, fittings and region-specific adapter for the ordered batch.

Before ordering

Confirm the washer and installation setup

Washer details

Send the brand, exact model, country, inlet photos and available wall space.

Utilities and fittings

Confirm household water pressure, cold-water hose fittings and the local electrical outlet.

Production batch

Confirm the product label, included fittings and region-specific power adapter before installation.

Want us to check your setup?

Send the washer model, country, quantity, and clear photos of the connection area for pricing and compatibility guidance.
